Precolor Tank Division
We are
specialists in manufacturing GRP (Fibreglass) water and chemical storage
tanks.
Precolor water and chemical storage tanks can be supplied as one piece
tanks, two piece tanks (semi sectional) or full sectional tanks. Bespoke
sized water storage tanks and chemical storage tanks can also be
manufactured to special requirements.
Tanks are free standing and only require a flat fully supporting base either
internal or external. They are supplied with a standard bolted lid to suit
as part of the main structure but can also be made open top with extra
reinforcement or support straps across the tank.
They are suitable for holding water – hot or cold, potable or not and for a
variety of chemicals such as glycol for chiller tanks. They can be utilised
for various operations, from feeding hotels to being installed as fire
sprinkler tanks.
We have over 30 years trading experience making our tanks some of the
highest quality on the market. All of our GRP water storage tanks are built
to last and are fully WRAS approved. The maintenance of quality is of major
importance to us and all our internal systems are fully compliant with BS EN
ISO 9001 : 2008. Delivery available throughout the UK.

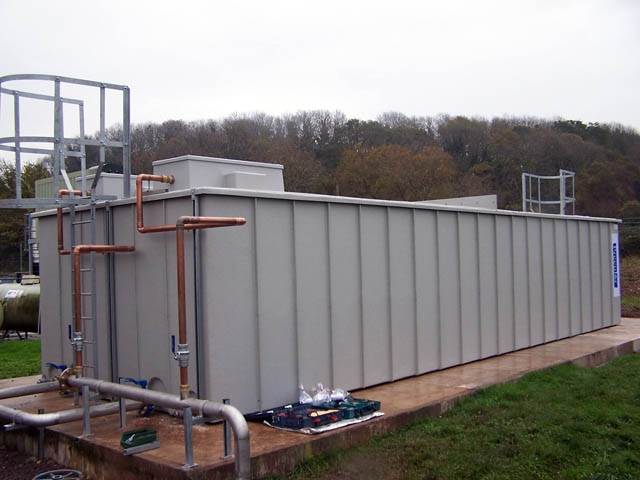

GRP One Piece Storage
Tanks
Precolor's GRP One Piece Tanks have been specifically designed to meet the
stringent requirements of BS EN 13280 : 2001, they are also fully WRAS
Approved. They are light in weight, easily handled and resistant to
corrosion and attack from bacteria which may normally be expected in cold
water systems. GRP is easily cut and drilled with ordinary plumbers tools.
We can also manufacture standard specialist tanks for storing a wide range
of chemicals. Tanks can be manufactured in our standard grey colour or to a
specific RAL colour as per the customers requirements, popular options are
British Racing Green and Blue
Pre-insulated tanks protect contents from extremes of heat and cold, thereby
reducing excessive temperature fluctuations which increase the risk of
bacteria growth. To restrict microbiological growth the temperatures in the
tank should be kept as low as possible and below 20 °C. Insulation is
available in either 25mm, 50mm, 75mm or 100mm expanded HCFC and CFC free
polyurethane foam encapsulated in both the lid and tank sides. Tanks
supported on a flat base do not normally require insulation underneath.
Standard positioned pre-formed cutouts to accommodate tank connections and
fittings are provided on all special and standard tanks. If required, we can
position the cutouts to the customers specification.
Precolor's standard Rigid One Piece tanks can be supplied in Metric and
Imperial sizes from 10 - 11,250 Gallons or 45 - 90,000 Litres. Special sizes
and shapes including irregular shapes such as 'L' shaped or tapered tanks
and cisterns can also be manufactured to customers own requirements.
These tanks make a cost effective alternative to traditional sectional tanks
where there are no access restrictions.
GRP Sectional Storage
Tanks
These tanks are for use where access is restricted or if replacement of a
defective tank involves extensive structural alteration to the building.
These tanks are manufactured in panels and then bolted and sealed at site by
our qualified technicians. We can install throughout the UK and all of our
installers are CSCS card holders.
Panels are 1m x 1m as standard, although different sizes can be manufactured
should access be particularly tight. Access of 500mm is usually required
around the tank to install. These tanks are ideal for tanks that need a
larger capacity but do not have the access to get a one piece or semi
sectional tank through.
Often, one piece or semi sectional tanks can be installed instead of the
more costly sectional tanks. We would always advise our customers to
consider these options before deciding on installing a sectional tank.
We offer three different types of sectional tanks depending on site
conditions and access restrictions.
Externally Flanged Base (E.F.B)
Externally Flanged Base tanks are designed for installation on dwarf walls
or steel beams.
Internally Flanged Base (I.F.B)
Internally Flanged Base tanks are designed to be installed on fully flat
supporting bases.
Totally Internally Flanged (T.I.F)
Totally Internally Flanged tanks are designed with all flanges on the inside
of the tank, which allow maximum size and installation in areas with
extremely restricted assembly space around the tank.
All of our one piece, semi sectional and sectional tanks are manufactured to
BS EN 13280: 2001 and fully approved by the Water Regulations Advisory
Scheme (WRAS)
GRP Semi Sectional
Storage Tanks
These GRP Tanks basically have the same specification as a one piece tank
except they have a single horizontal joint which splits the height of the
tank, separating it into two halves. This then allows the tank to be passed
through a doorway or similar access restrictions allowing them to be easily
assembled on the other side. Two piece semi-sectional tanks can be used as
an alternative to the conventional sectional types of tanks, saving
expensive installation and future maintenance costs.
These two piece tanks can easily be erected by the customer and are supplied
complete with nuts, bolts, washers and sealer.
Tank Accessories
Precolor can supply most tank fittings and accessories as listed below: -
- Screened Overflows, Warning Pipes, Tank Breathers and Vents
- PN16 Stub Flanges with Galvanised Backing Ring
- Equilibrium Ball Valves
- Aylesbury Float Valves
- AD52 Magnetic Float Switches
- Screened spillover weirs for Type AB Airgaps - for Fluid
Category 5 Back Flow Prevention
- Raised Ball Valve Housings
- Access hatches - circular or rectangular
- GRP Drip Trays
- Centre, Baffle & Weir Plates
- Brass BSP Essex Connectors
GRP Housings
Precolor's GRP Housings, Kiosks and Enclosures are designed to protect and
insulate tanks, pipework, pumps, meters and associated equipment against the
weather, accidental damage and vandalism. Our housings can be supplied in
one piece or in sections for assembly on site.Our housings are very
versatile and can be sited on the ground, a flat roof or any other level and
even surface as required. They can also be manufactured plain or with
encapsulated insulation. Custom made to your particular requirements.
Available with any of the following features:-
- Single or Double Doors
- Lockable Handles
- Louvered Vents
- Plywood Internal Back Boards
- Fire Retardant resin on application
- Boltable down
- Available in a variety of external colours
- Smooth External Surface
- Custom made to any sizes
